Plastic Heating Panel for Ultraflex Flooring System

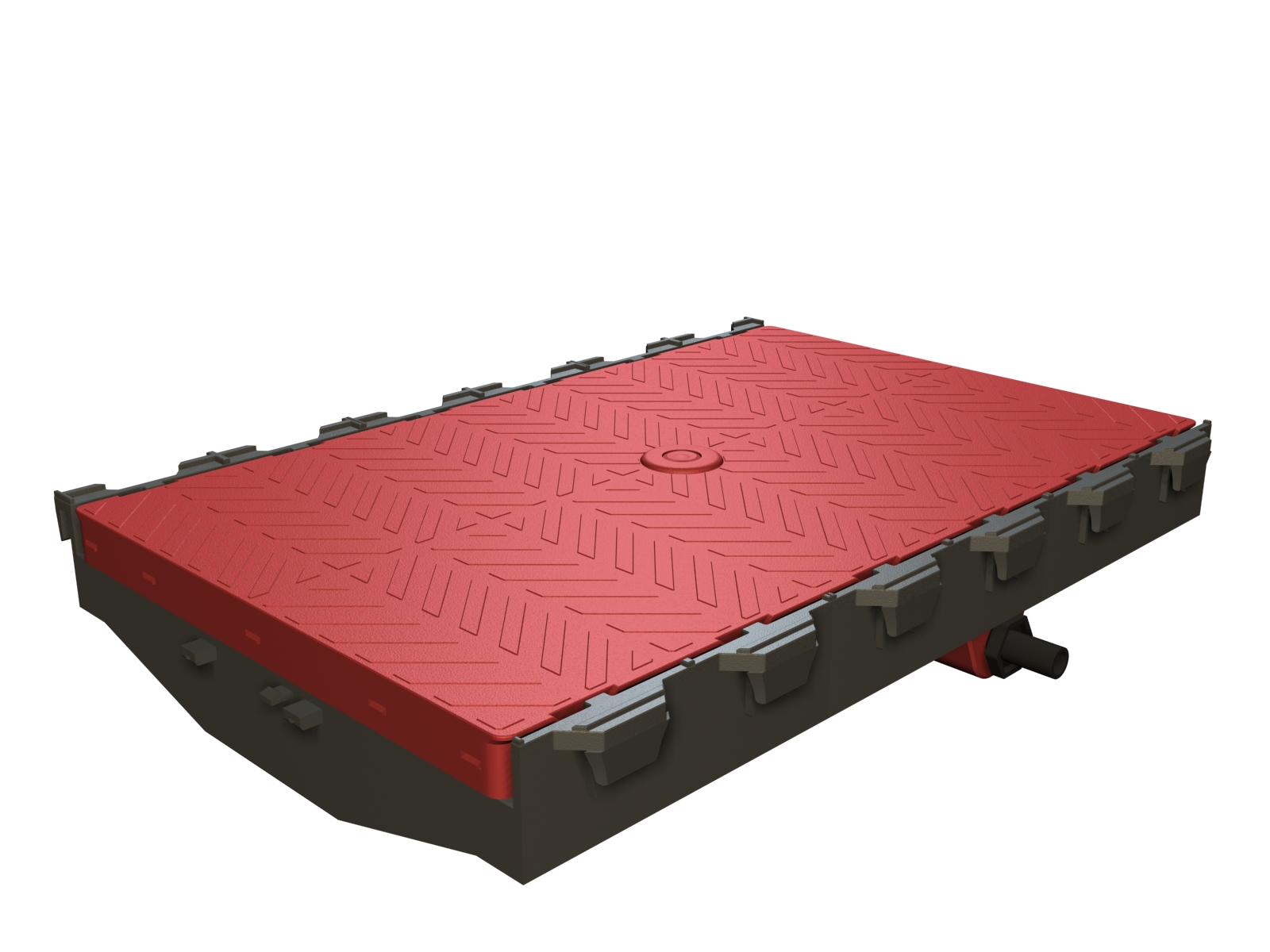

The Ikadan Ultraflex heating panel (patent pending) consists of a plastic container filled with water which is heated by recirculating hot water. The hot water supply passes through an aluminum heat exchanger located in the lower area, transferring heat into the heat panel's water.



The T-shape design of the heat panel, with the heat exchanged at the lowest point, automatically creates water currents in the panel's liquid, resulting in comfortable, uniform surface temperatures. The T-shape also allows connection of the hot water supply piping underneath the flooring support beams, reducing installation costs.

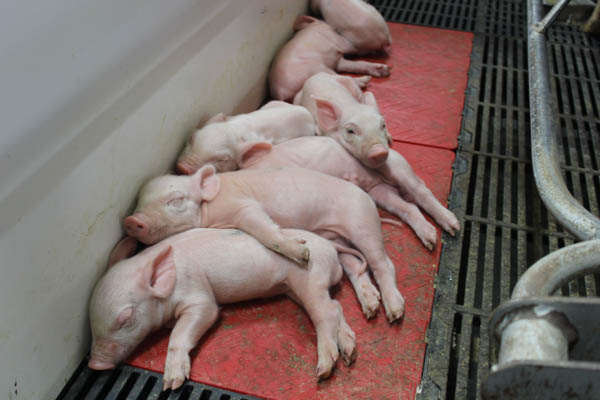

The plastic heat panels can be utilized in the piglet creep areas of farrowing crates or pens, nursery warm zones, and in dual climate pens where the panels are installed under a covered area. Currently, the heating panel is sized to fit the metric flooring system and replaces one USM 60x40 cm standard plastic flooring element. Heat panels are furnished with plastic inserts, which allow snapping the unit directly into the flooring grid. The system can be adapted to Standard/Imperial sizing (24" x 18") for use in a 5' wide farrowing layout upon request from the customer.



Please inquire about further options.
